Description
Key Performance Specs

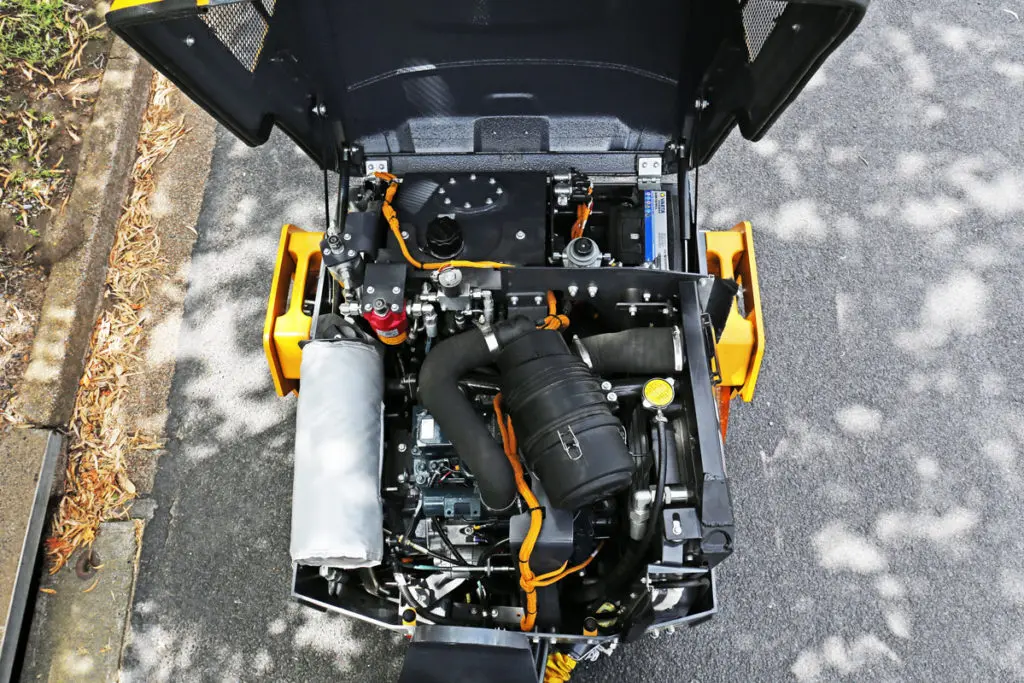

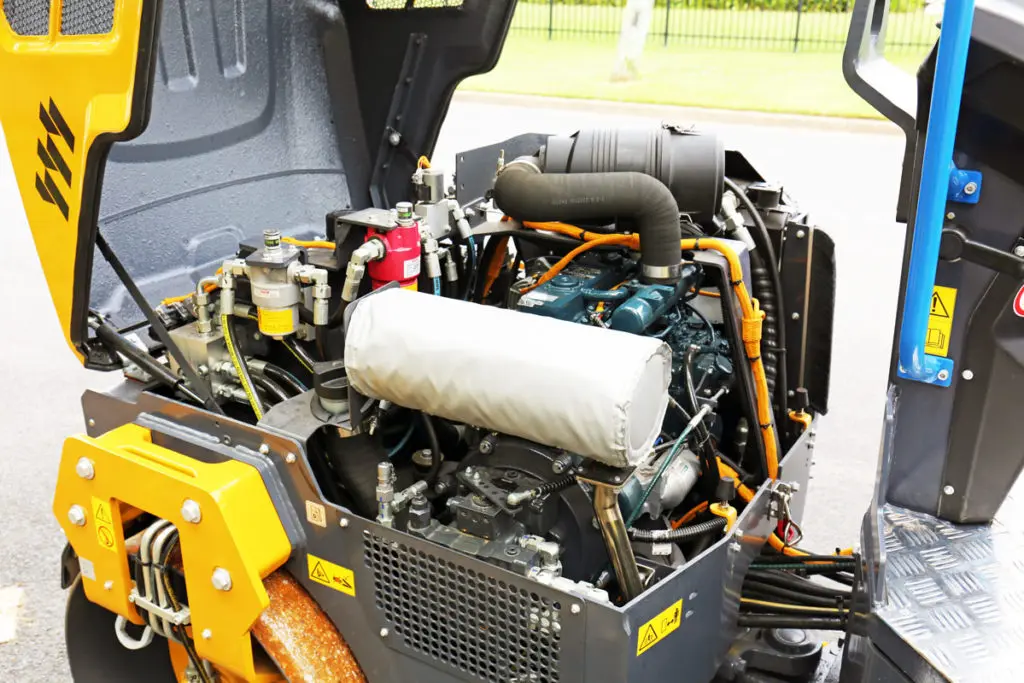

| Engine: | Kubota D1803-CR-E5B or D1703 |
| Rated Power: | 24 kW / 33 HP |
| Rated Speed: | 2400 RPM |
| Operating Weight: | 2700 kg (approx) |
| Static Load Front Drum: | 110 N/cm |
| Static Load Rear Drum: | 110 N/cm |
| Operating Speeds: | 0-10 km/h |
| Theoretical Gradeability: | 30 % |
| Min Turn Radius (internal / external): | 2250 / 3450 mm |
Additional Specs

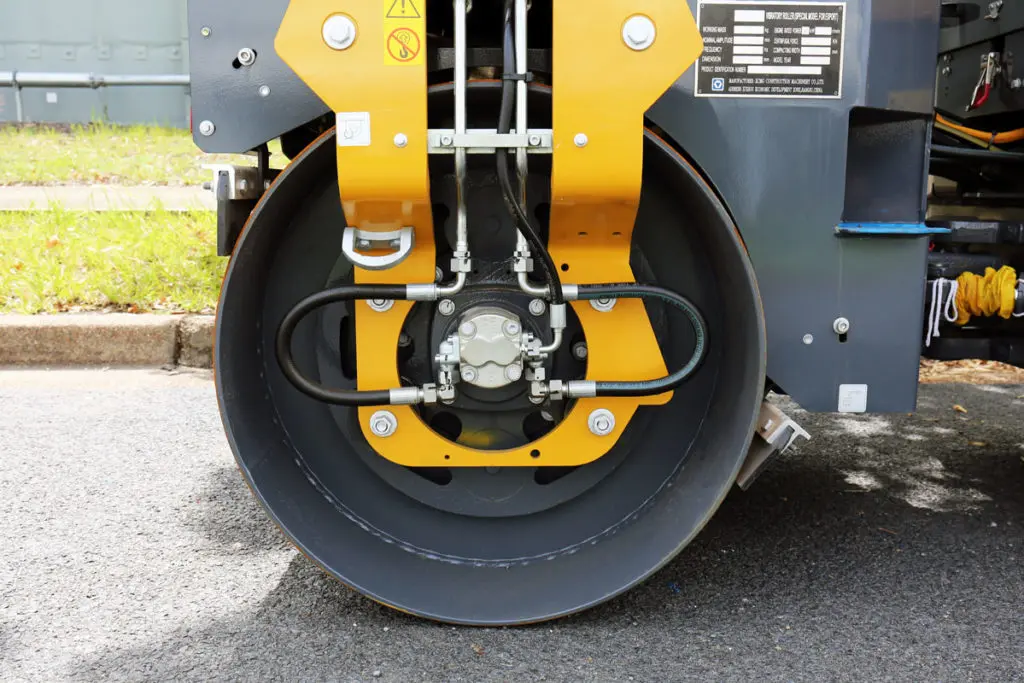

| Drum Type: | Smooth |
| Vibration Frequency: | 63/67 Hz |
| Nominal Amplitute: | 0.5 mm |
| Vibration Force: | 36/41 kN |
| Drum Diameter: | 720 mm |
| Drum Width: | 1200 mm |
| Oscillation Angle: | +- 8 Degrees |
